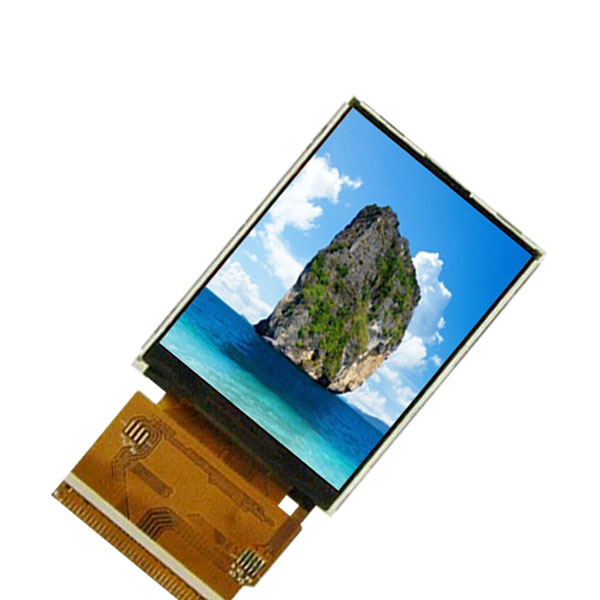

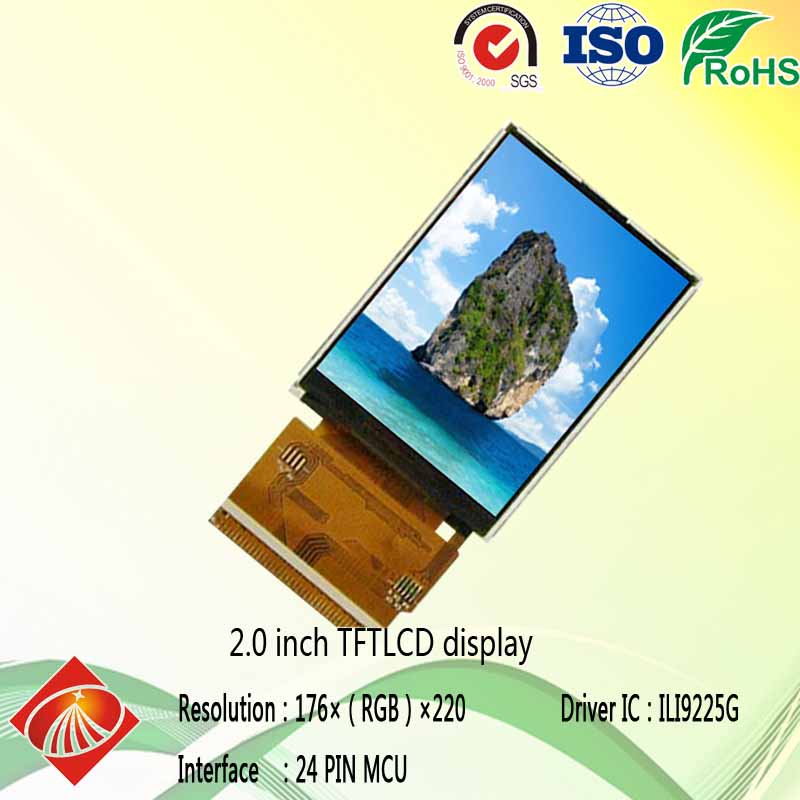

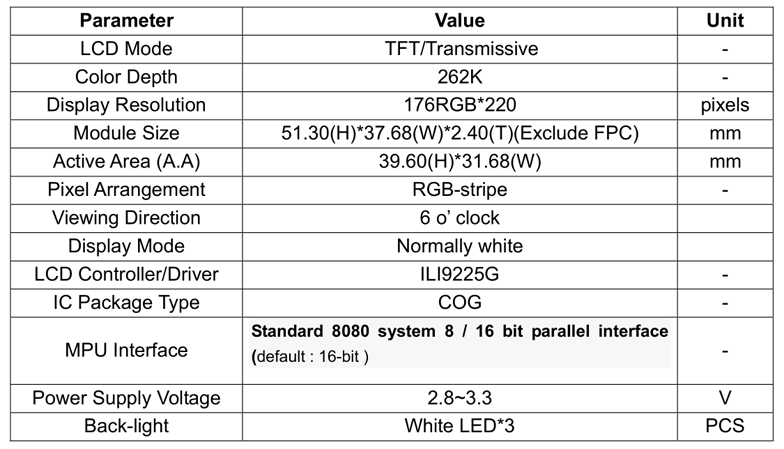

| Panel Size | 2.0 inch |
| LCD Type | Transmissive TFT , 262K color |
| Module Size | 51.30(H)×37.68(W)×2.40(T) |
| Display Area | 39.6(W) ×31.68 (H) |
| Number of Dots | 176×(RGB)×220 Dots |
| Best Viewing Direction | 12 O’clock |
| Driver IC | ILI9225G |

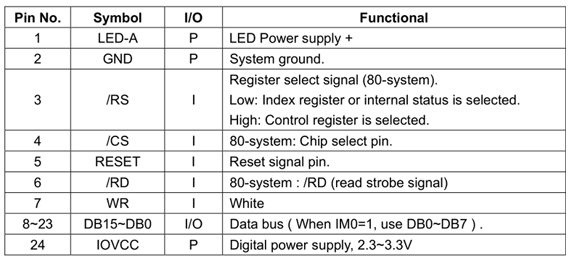

| Interface Pins | 24PIN MCU |
| LED Numbers | 3 Leds |
| Luminance | 250 cd/m 2 |
| With /Without TSP | Without TP/With CTP/With RTP |
Product Statement:
The above products are our standard products, can be customized according to customer requirements; The appearance, color and parameters of the products listed on the website are for users' reference only. The material material produced by Xunrui Photoelectric Company shall be the standard. Customers and friends, if you have any questions about the products, please contact us as soon as possible.
